| 是否进口：否 | 产地：美国 | 加工定制：是 |
| 类型：波形信号发生器 | 品牌：Agilent/安捷伦 | 型号：E5071C ENA |
| 订货号：E5071C ENA | 货号：E5071C ENA | 频率：-MHz |
| 电平：-V | 外形尺寸：-mm | 重量：--kg |
| 是否跨境货源：否 |

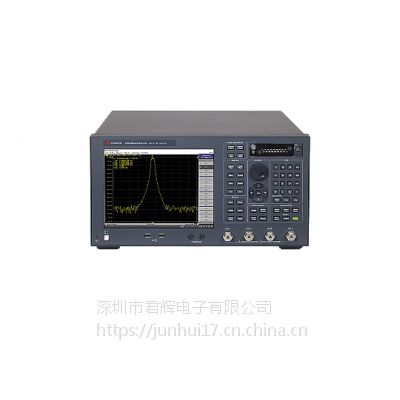

E5071C ENA 矢量网络分析仪，现有少了二手的E5071C-285 -W7网络分析仪出租或出售
同时我司大量提供二手的是德、泰克、RS仪器出租出售，
主要特性和功能
9 kHz 至 4.5/6.5/8.5/14/20 GHz
2 或 4 端口，50 Ω，S 参数测试仪
提供 130 dB 宽广的动态范围、8 ms 快速测量速度和 0.005 dB/℃ 温度稳定度，可改善测量精度、提高产品良率并增加设计裕量
增强时域分析选件可对高速串行互连进行全面表征，增强您对设计的信心
技术指标
了解详细信息: 查看技术资料
| 频率 | 20 GHz |
|---|---|
| 动态范围 | 123 dB |
| 输出功率 | 10 dBm |
| 内置端口数量 | 2 或 4 端口 |
| 谐波 | -25 dBc |
| 扫描速度可达 201 个点 | 5 ms |
| 元器件 |
|
| 台式 | 是 |
选件
了解详细信息: 查看配置指南
| Additional features | |||
| E5071C-010 | 时域分析 | ||
| E5071C-790 | 测量向导助手（MWA）软件 | ||
| E5071C-008 | 频率偏置模式 | ||
| E5071C-TDR | 增强时域分析 | ||
| Timebase stability | |||
| E5071C-UNQ | Standard stability timebase | ||
| E5071C-1E5 | High stability timebase | ||
| Calibration documentation | |||
| E5071C-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) | ||
| E5071C-A6J | ANSI Z540-1-1994 Calibration | ||
| Test set | |||
| E5071C-280 | 2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees | ||
| E5071C-285 | 2-port Test Set, 100 kHz to 8.5 GHz with Bias Tees | ||
| E5071C-480 | 4-port Test Set, 9 kHz to 8.5 GHz without Bias Tees | ||
| E5071C-485 | 4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees | ||
| E5071C-240 | 2-port Test Set, 9 kHz to 4.5 GHz without Bias Tees | ||
| E5071C-245 | 2-port Test Set, 100 kHz to 4.5 GHz with Bias Tees | ||
| E5071C-2K5 | 2-port Test Set, 300 kHz to 20 GHz with Bias Tees | ||
| E5071C-440 | 4-port Test Set, 9 kHz to 4.5 GHz without Bias Tees | ||
| E5071C-4K5 | 4-port Test Set, 300 kHz to 20 GHz with Bias Tees | ||
| E5071C-445 | 4-port Test Set, 100 kHz to 4.5 GHz with Bias Tees | ||
| E5071C-4D5 | 4-port Test Set, 300 kHz to 14 GHz with Bias Tees | ||
| E5071C-465 | 4-port Test Set, 100 kHz to 6.5 GHz with Bias Tees | ||
| E5071C-460 | 4-port Test Set, 9 kHz to 6.5 GHz without Bias Tees | ||
| E5071C-2D5 | 2-port Test Set, 300 kHz to 14 GHz with Bias Tees | ||
| E5071C-265 | 2-port Test Set, 100 kHz to 6.5 GHz with Bias Tees | ||
| E5071C-260 | 2-port Test Set, 9 kHz to 6.5 GHz without Bias Tees | ||
| Hard disk drive options | |||
| E5071C-017 | Removable Data Storage | ||
| E5071C-019 | Standard Data Storage | ||
| Accessories | |||
| E5071C-1CM | Rack mount kit | ||
| E5071C-1CN | Front handle kit | ||
| E5071C-1CP | Rack mount and front handle kit | ||
| E5071C-810 | Add keyboard | ||
| E5071C-820 | Add mouse | ||
